SELEX® PLYWOOD CD No Structural AUS
SELEX® PLYWOOD CD No Structural AUS

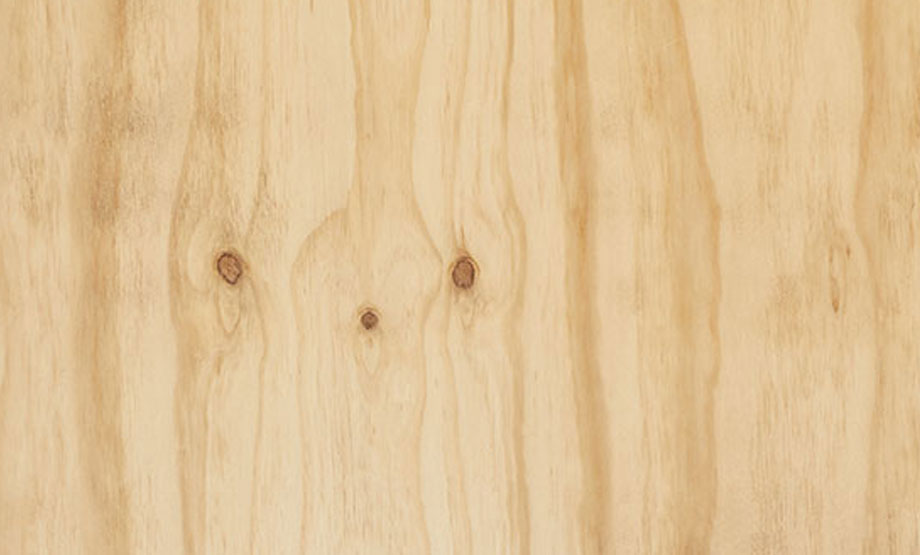

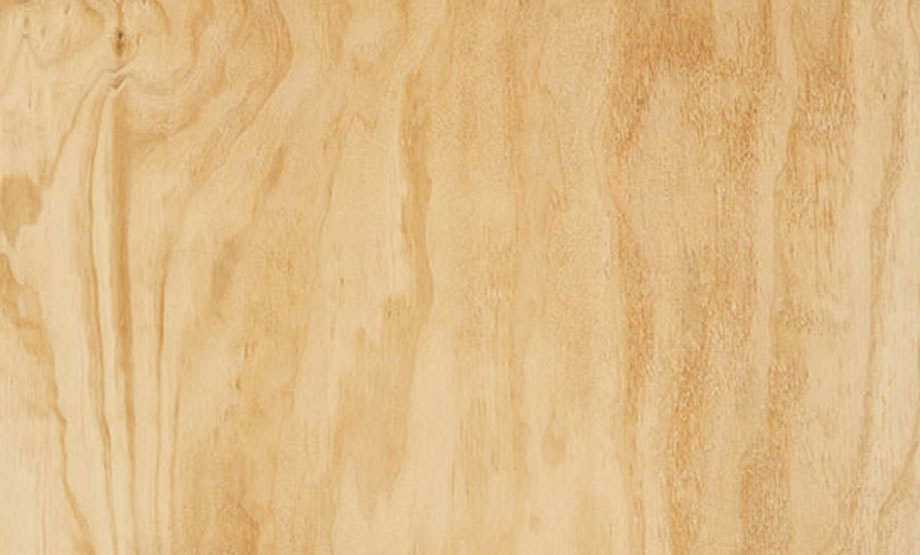

Selex® Radiata Pine Non-Structural Plywood has a variety of uses throughout the construction industry, particularly when structural characteristics are not required, whether that means not bearing weight or in cases where there is no requirement to meet the construction codes of Australia or New Zealand. This product offers one side that allows for a certain level of closed and repaired defects, and a reverse side that allows for appearance defects and open defects, conditions that allow it to be used in several applications.
Main applications
- Fences
- Non-structural packaging
- Kennels, mailboxes, dollhouses, DIY projects
- General applications
DOWNLOAD DATA SHEET
General applications
| Dimensions | 1200 x 2400 | ||||||
| Espesor (mm) | 6.5 | 9 | 12 | 15 | 18 | 21 | 2 |
| Thickness (mm) | 1/4" | 11/32” | 5/32" | 19/32” | 23/32" | 13/16” | 1" |
| No. of layers | 3 | 3 | 5 | 5 | 6/7 | 7 | 9 |
| Density | 480 - 550 kg / m³ | ||||||
| Sanding grain | 150 grit on front and 120 grit on back | ||||||
| Adhesive | Phenol-formaldehyde that complies with Super E0 emission standard | ||||||
| Moisture content | 8% a 12% | ||||||
| Forestry certification | FSC® y PEFC™ certified products | ||||||
Storage Instructions
Selex® Plywood panels should be stored horizontally, on a flat surface, and in a dry and covered place, on three wooden slats.
Installation Recommendations for Construction:
Selex® Plywood must be installed leaving a gap of 3 to 4 mm in the joints between plywood sheets to absorb the dimensional variations of the wood.
Selex® Radiata Pine Plywood panels follow the highest standards of responsible forest management, thus ensuring that all raw material used comes from FSC® certified forests and other controlled sources.
Specialities Plywood
Selex specialty products deliver added value in plywood solutions, always maintaining the high quality and versatility that our brand is known for. Find out more about treated and thermally modified panels here.
Environmental Product Declaration (EPD)
An EPD is a certified environmental declaration prepared in accordance with the international standard ISO 14025 (Type III Environmental Declarations).
It is environmental information about a product/service based on a life cycle analysis (LCA) and other relevant information, in compliance with the standard.
