Selex® Plywood T/G



Selex® Plywood T/G

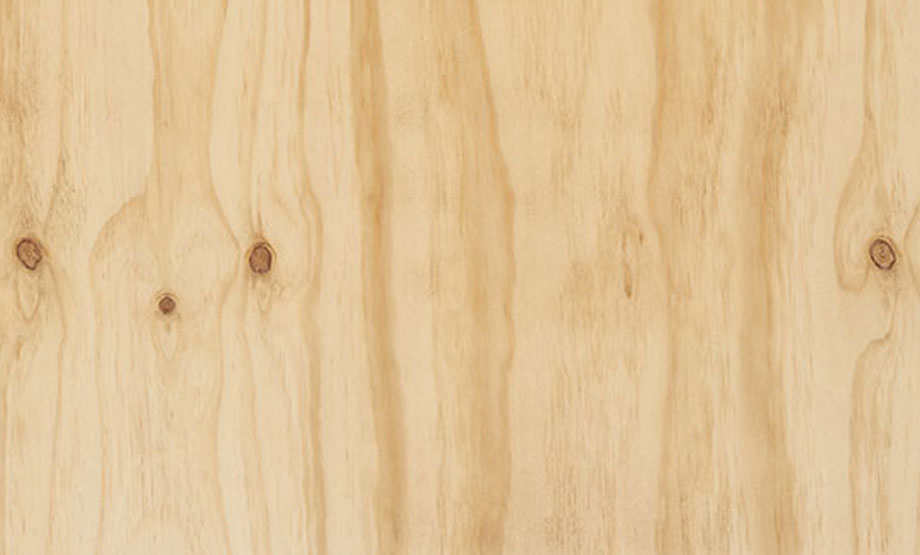

Selex® Radiata Pine T&G Plywood panels, have a tongue and groove configuration that facilitates installation and provides greater stability and rigidity at the time of installation in construction applications.
Easy handling due to its excellent weight-volume ratio.
- Edges with tongue and groove
- Types of T&G: 2 and 4 edges
Main Applications
- Construction of floors and ceilings
- Walls
HALF SIZE
- Dimensions 600 x 2400
- Thicknesses (mm) 12, 15, 18, and 21
- Thickness (inches) 15/32, 19/32, 23/32, 13/16
- Structural Certification: AS/NZS 2269, EN 13896, PS1-19
DOWNLOAD DATA SHEET
General Specifications
Dimensions (mm) | 1220 x 2440 | |||
Thickness (mm) | 12 | 15 | 18 | 21 |
Thickness (Inches) | 15/32” | 19/32” | 23/32 | 13/16 |
No. of layers | 5 | 5 | 6/7 | 7 |
Density | 480 - 550 kg / m³ | |||
Sanding grain | 150 grit on front and 120 grit on back | |||
Adhesive | Phenol-formaldehyde that complies with E1 emission standard | |||
Moisture content | 8% to 12% | |||
Structural certification | PS1-19 by TP & EN 13986 (CE2 +) by HFB | |||
Forestry certification | FSC® and PEFC™ certified products |
Storage Instructions
Selex® Plywood panels should be stored horizontally, on a flat surface, and in a dry and covered place, on three wooden slats.
Selex® Radiata Pine Plywood panel follow the highest standards of responsible forest management, thus ensuring that all raw material used comes from FSC® certified forests and other controlled sources.

Specialities Plywood
Selex specialty products deliver added value in plywood solutions, always maintaining the high quality and versatility that our brand is known for. Find out more about treated and thermally modified panels here.
Environmental Product Declaration (EPD)

An EPD is a certified environmental declaration prepared in accordance with the international standard ISO 14025 (Type III Environmental Declarations).
It is environmental information about a product/service based on a life cycle analysis (LCA) and other relevant information, in compliance with the standard.
